Cement Fineness Test: Sieve and Blaine Methods, IS 4031
A cement fineness test measures how finely a cement has been ground. That single property drives how fast the cement sets, how much heat it generates, and how strong it becomes early on. Two methods produce this number in India: dry sieving and Blaine air permeability. Here is how each works, what apparatus each needs, and which limits your result has to meet.
Key takeaways
- A cement fineness test can use either the sieve method or the Blaine air permeability method, and both are standardised under IS 4031.
- The sieve method reports the percentage of cement retained on a 90 micron sieve.
- The Blaine method reports specific surface area in cm² per gram, a more precise measure for finely ground cement.
- Finer cement, however, gains strength faster, though it also generates more heat of hydration during setting.
- Both methods, in turn, carry defined limits under IS 4031, and a result outside those limits affects setting time and durability, not just strength.
Why a cement fineness test matters
Finer cement particles expose more surface area to water, so hydration starts faster and early strength develops sooner. This sounds like an unqualified benefit. However, finer cement also generates more heat during hydration and shrinks more on drying, which matters for mass concrete pours. Fineness is therefore a balance, not simply “more is better”. Testing it confirms the cement actually matches the grade it claims to be.
Method 1: cement fineness test by dry sieving
The sieve method follows Bureau of Indian Standards IS 4031 (Part 1):1996. It measures the sieve used for fineness of cement directly: a standard 90 micron IS sieve.
- Weigh the sample. 100 grams of cement, free of lumps, at the test temperature.
- Sieve continuously. Agitate using planetary, linear and swirling motions for 15 minutes.
- Weigh the residue. Specifically, the material retained on the sieve once sieving is complete.
- Calculate the percentage. Divide residue weight by original sample weight, then express it as a percentage.
- Repeat and average. Run a second test. If the two results differ by more than 1%, run a third and average the closest two.
Method 2: cement fineness test by Blaine air permeability
The Blaine method, standardised under IS 4031 (Part 2):1999, measures specific surface rather than particle retention. It works on a different principle entirely. Air is drawn through a compacted bed of cement, and the time that air takes to pass correlates with the surface area the cement particles present. Finer cement packs more tightly and slows the air down, so a longer permeability time means a higher specific surface value.

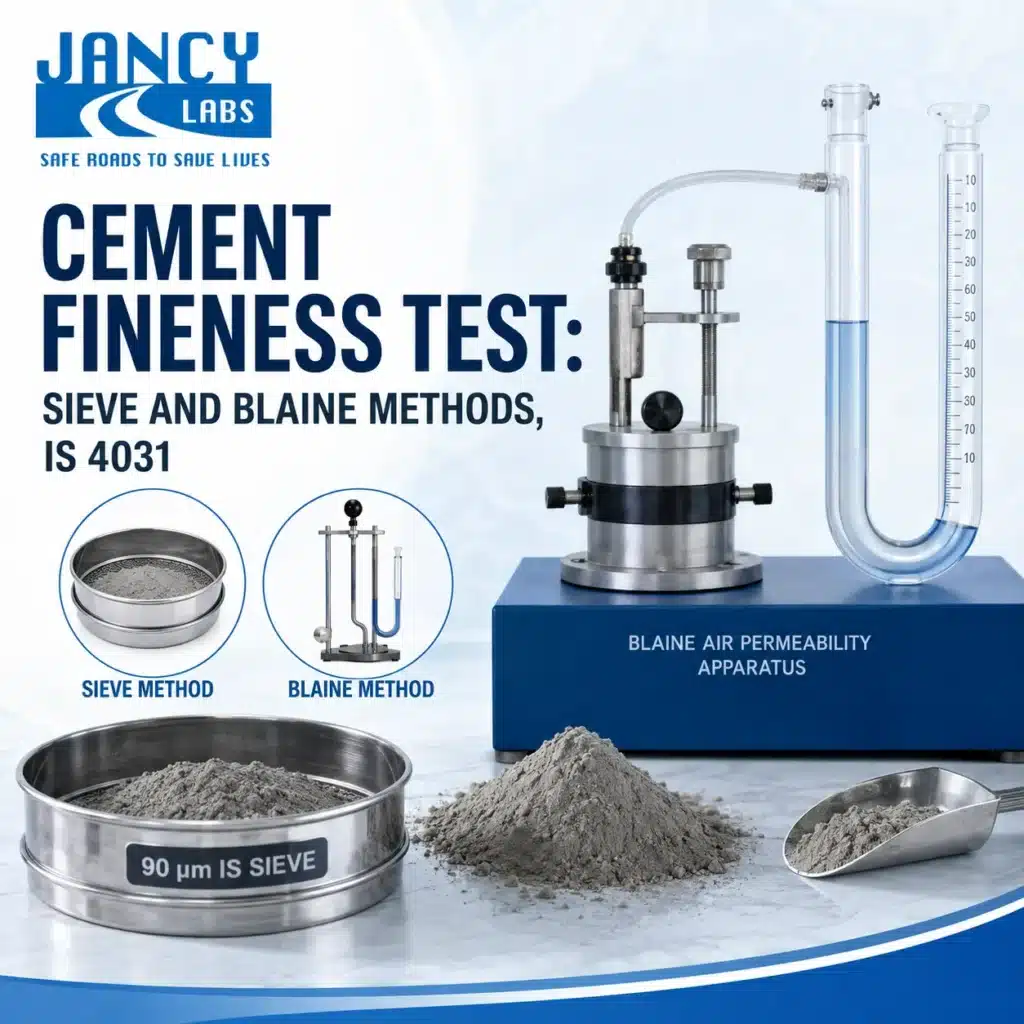

The cement fineness test apparatus for this method includes a Blaine permeability cell, a manometer U-tube, a stopwatch, and a calibrated reference cement sample. That reference sample checks the apparatus constant before testing begins.
Sieve method or Blaine method: which to use
The sieve method is simpler and needs no calibration, which is why it works well as a quick site check. The Blaine method, in contrast, is more precise for very fine cements, since particles below 90 microns pass straight through a sieve without being counted at all. Consequently, a fineness of cement by sieve analysis result alone can understate how fine a modern OPC or PPC actually is. The Blaine value, as a result, is what most cement specifications rely on for acceptance.
Cement fineness test limit by cement type
IS 4031 sets minimum fineness requirements that vary by cement grade and type:
Cement type | Sieve method limit | Blaine method limit |
OPC 33 Grade | ≤ 10% retained on 90 µm sieve | ≥ 2250 cm²/g (Blaine) |
OPC 43 Grade | ≤ 10% retained on 90 µm sieve | ≥ 2250 cm²/g (Blaine) |
OPC 53 Grade | ≤ 10% retained on 90 µm sieve | ≥ 2250 cm²/g (Blaine) |
PPC | ≤ 10% retained on 90 µm sieve | ≥ 3000 cm²/g (Blaine) |
PPC needs a higher Blaine value because the pozzolanic material blended into it needs more surface area to react fully with the available lime.
International equivalents
Outside India, a fineness of cement astm search usually leads to ASTM C204, the American equivalent of the Blaine method, and ASTM C430, the sieve-method equivalent. Both ASTM International standards follow the same underlying principles as IS 4031. So a cement tested to either system reports fineness that is broadly comparable, even though the apparatus tolerances differ slightly. Fineness also feeds directly into concrete mix design, since a mix designed around one fineness value behaves differently if the cement batch actually delivered is coarser or finer than assumed.
What a limit failure means on site
A cement fineness test limit failure rarely means the cement is unusable. Coarser-than-specified cement usually just needs longer curing to reach its design strength. Finer-than-specified cement, on the other hand, may need adjusted mix water to control shrinkage. Either way, the result should feed into a broader check alongside cement testing services, and where the cement is going into structural work, concrete cube testing on the finished mix, rather than being read in isolation.
Frequently Asked Questions
Which is more accurate: sieve or Blaine method?
The Blaine method is generally more accurate for modern, finely ground cements, since sieving cannot detect particles finer than the sieve mesh itself.
What sieve size is used for cement fineness testing?
A standard 90 micron IS sieve is used for the dry sieving method under IS 4031 Part 1.
Does higher fineness always mean better cement?
No. Higher fineness speeds up strength gain, but it also increases heat of hydration and drying shrinkage. So the right fineness depends on the application, not a single "more is better" rule.
What happens if cement fails the fineness test?
A failure usually calls for adjusted curing time or mix water, rather than rejecting the batch outright, and the result should be read alongside strength and setting-time tests rather than in isolation.
