Jancy Labs — Network Survey Vehicle Testing

NABL Accredited Laboratory (Certificate No. TC-12176) as per ISO/IEC 17025:2017

Your NHAI or Highways project needs accurate pavement condition data. Jancy Labs delivers Network Survey Vehicle testing in Madurai — covering IRI roughness, rut depth, and cracking & distress — so your report stands up at every stage of approval. Skipping certified NSV data means delayed approvals and unbudgeted rework.

Schedule Your Survey Call +91 86800 49004

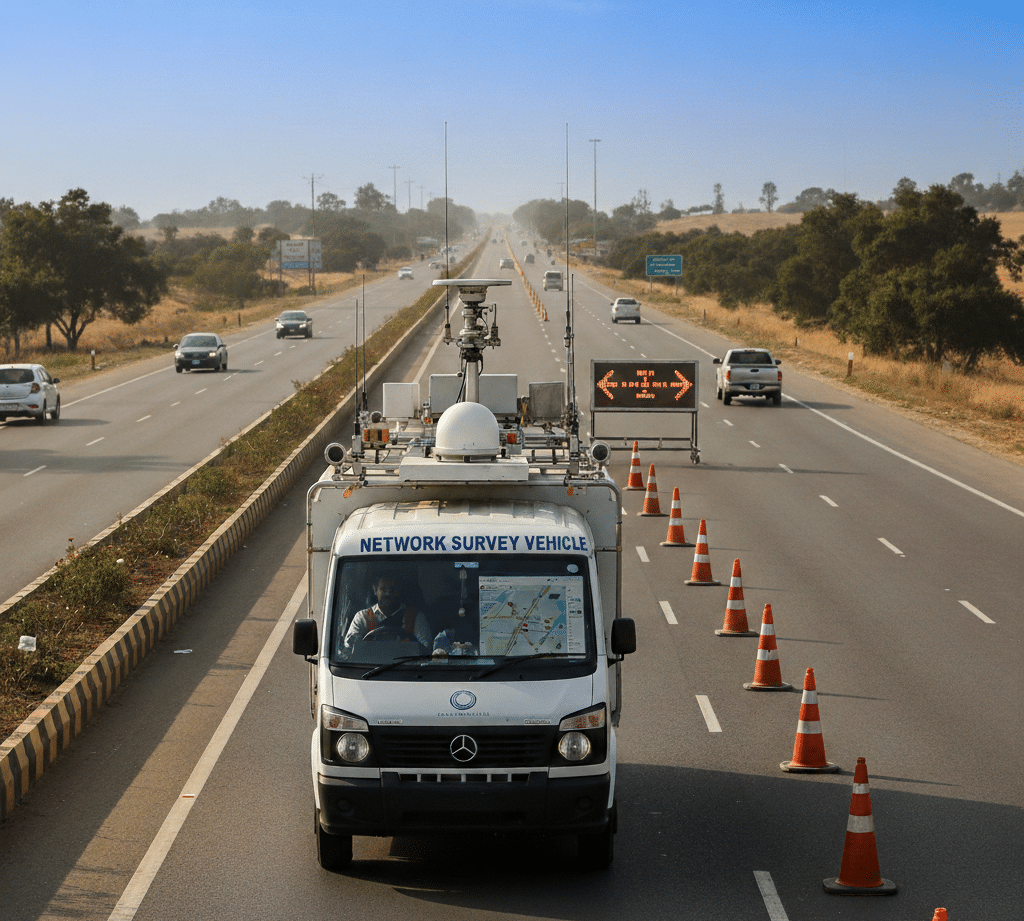

Network Survey Vehicle on highway — Jancy Labs NSV testing in Madurai Tamil Nadu for NHAI and Highways Department
Overview

What Is Network Survey Vehicle Testing?

Network Survey Vehicle (NSV) testing is a mobile pavement evaluation method. An NSV travels your road section and continuously records surface condition data — roughness, rutting, and cracking — against GPS chainage. Your project gets a precise, kilometre-by-kilometre condition profile that manual inspection cannot match.

Highway engineers and contractors who skip NSV surveys risk submitting Pavement Management System (PMS) data that NHAI or the Highways Department rejects outright — causing costly project delays. Jancy Labs conducts IRC SP 16-compliant NSV testing for highway projects across Tamil Nadu, producing reports that NHAI and the Highways Department (PWD) accept for pavement condition surveys and maintenance planning.

⚠️ Your pavement survey deadline is closer than you think. Get IRC SP 16-compliant NSV test reports — accepted by NHAI and Highways Department — from Jancy Labs. Schedule your survey today →
NSV Test List

Full NSV Test List

Jancy Labs conducts three core NSV tests on road sections. All tests follow IRC SP 16 and produce GPS-tagged, MoRT&H-format outputs:

01

Roughness — International Roughness Index (IRI)

IRC SP 16

Measures ride quality by recording vertical pavement surface deviations continuously as the NSV travels at survey speed. IRI is reported in m/km and is the primary pavement condition trigger for NHAI maintenance and overlay decisions.

  • Ride quality assessment per IRC SP 16 guidelines
  • Pavement maintenance trigger for NHAI DLP audits
  • Required input for PMS data submission
  • GPS-tagged, kilometre-by-kilometre IRI profile
02

Rut Depth Measurement

IRC SP 16

Measures transverse permanent deformation (rutting) of the pavement surface using laser-based profiling. Rut depth data identifies structural distress zones, overlay triggers, and sections requiring rehabilitation rather than routine maintenance.

  • Structural distress identification across the road section
  • Trigger parameter for overlay or rehabilitation decisions
  • Cross-sectional rut depth profile at specified intervals
  • Used in NHAI OMT contract performance monitoring
03

Cracking & Distress Detection

IRC SP 16

Automated image-based detection of surface cracking and pavement distress — classifying fatigue (alligator) cracking, longitudinal cracking, transverse cracking, and patching by location and severity across the full survey length.

  • % cracked area per section for PMS reporting
  • Fatigue, longitudinal & transverse crack mapping
  • Distress severity classification per IRC SP 16
  • GPS-tagged distress inventory for maintenance planning
Test Reference

NSV Tests at a Glance

All NSV outputs follow IRC SP 16 and are structured for MoRT&H and IHMMS submission requirements:

TestStandardParameterApplication
IRI Roughness MeasurementIRC SP 16International Roughness Index (m/km)PMS data, NHAI maintenance trigger, DLP audits
Rut Depth MeasurementIRC SP 16Transverse rut depth (mm)Overlay / rehabilitation trigger, OMT monitoring
Cracking & Distress DetectionIRC SP 16% cracked area, distress type & severityPMS reporting, maintenance planning, DPR preparation

Outputs include GPS-tagged chainage data linked directly to your project alignment, simplifying DLP monitoring and IHMMS submission. Reports are signed by qualified highway engineers — not just technicians.

Why Us

Why Choose Jancy Labs for NSV Testing?

We understand what NHAI reviewers look for — and we deliver reports that pass:

  • IRC SP 16 compliance — every output references the correct standard, so your submission meets NHAI's PMS data requirements without revision requests.
  • Qualified highway engineers sign all reports — not just technicians. Every NSV report carries the signature of a qualified highway engineer as required by NHAI and the Highways Department.
  • GPS-tagged chainage output — data links directly to your project alignment, simplifying DLP monitoring and enabling precise section-by-section maintenance planning.
  • NHAI and Highways Department (PWD) accept our reports — for pavement condition surveys, maintenance planning, and OMT contract monitoring.
  • MoRT&H-aligned data format — compatible with IHMMS submission requirements, eliminating reformatting delays before upload.
  • Fast turnaround — we understand tender and DLP deadlines don't wait. Speak to us before scheduling so we can confirm availability for your road section.
  • Hands-on OMT contract documentation experience — our team works with contractors, DPR consultants, and government departments across Tamil Nadu.
Why It Matters

The Risk of Submitting Uncertified NSV Data

Submitting uncertified or incomplete pavement survey data to NHAI can result in outright PMS submission rejection — or worse, financial penalties during performance audits under OMT contracts. EPC contractors and DPR consultants preparing NHAI bid documents regularly use our NSV data to establish baseline pavement condition before submission.

Additionally, departments increasingly require GPS-tagged, IRC SP 16-compliant NSV outputs — not manual walk-through surveys. A Jancy Labs NSV report gives your project team the verified, engineer-signed data that survives NHAI scrutiny at every stage of approval.

Who We Serve

Who We Serve

Jancy Labs provides NSV testing reports to the following departments and organisations that work with road pavement condition data:

Road & Highway Departments

  • NHAI — National Highway PMS data, OMT contract monitoring
  • Highways Department / PWD — State highway DLP assessments
  • TNRDC — Tamil Nadu Road Development Corporation project evaluations
  • MoRT&H — Central scheme road monitoring data
  • PMGSY — Rural road surface condition reports
  • NHIDCL — National Highways and Infrastructure Development projects

Other Infrastructure Clients

  • Southern Railway / RVNL / IRCON — Road over bridge approach pavement surveys
  • MES / BRO — Defence road condition assessments
  • EPC contractors — Baseline pavement condition for NHAI bid documents
  • DPR consultants — Pre-DPR pavement condition surveys

Notably, submitting uncertified or incomplete pavement survey data can result in NHAI rejecting your PMS submission — or financial penalties during performance audits. Contact us before your deadline →

How It Works

How to Get Your NSV Survey Report

Getting a certified NSV survey report from Jancy Labs is straightforward:

01

Call First

Contact us with your road section, chainage range, project type (NHAI / PWD / PMGSY), and submission deadline. We confirm availability and advise on the report format your department requires before mobilising.

02

NSV Survey Run

Our NSV travels your road section at survey speed, continuously recording IRI roughness, rut depth, and cracking & distress data against GPS chainage. Surveys can cover multiple kilometres per day.

03

Data Processing

Raw sensor data is processed to produce kilometre-by-kilometre condition profiles — IRI in m/km, rut depth in mm, and % cracked area — in MoRT&H-aligned, IHMMS-compatible format.

04

Engineer-Signed Report Issued

You receive a complete IRC SP 16-compliant report signed by a qualified highway engineer — ready for PMS submission, DLP audit, or tender documentation.

Questions

Frequently Asked Questions

Is Jancy Labs qualified to conduct Network Survey Vehicle testing?
Yes. Jancy Labs conducts IRC SP 16-compliant NSV testing for highway projects. Our highway engineers produce reports that NHAI and the Highways Department accept. We have hands-on experience with OMT contract documentation and work with contractors, DPR consultants, and government departments across Tamil Nadu. Our outputs follow MoRT&H pavement evaluation guidelines and IRC SP 16, making them compatible with IHMMS submission requirements.
Which NSV tests does Jancy Labs conduct?
Jancy Labs conducts three core NSV tests on road surfaces: Roughness measurement (International Roughness Index — IRI in m/km), Rut Depth measurement (transverse permanent deformation in mm), and Cracking & Distress Detection (% cracked area per section, with fatigue, longitudinal, and transverse crack mapping). Additionally, we provide GPS-tagged chainage output and MoRT&H-format reports compatible with IHMMS submission.
Are Jancy Labs NSV reports accepted by NHAI and Highways Department?
Yes. NHAI and Highways Department accept our NSV reports. Our outputs follow MoRT&H pavement evaluation guidelines and IRC SP 16, making them compatible with IHMMS submission requirements. Furthermore, our reports include GPS-tagged chainage data and are signed by qualified highway engineers — not just technicians. We recommend confirming the specific report format your department or project requires before commissioning the survey.
What is the International Roughness Index (IRI) in NSV testing?
The International Roughness Index (IRI) is a standardised measure of pavement ride quality — reported in m/km (metres per kilometre). A lower IRI value indicates a smoother, better-maintained pavement; higher values indicate rougher conditions that affect vehicle operating costs and ride comfort. NHAI uses IRI thresholds to trigger maintenance, overlay, and rehabilitation actions under OMT contracts. Jancy Labs' NSV measures IRI continuously across your road section, producing a kilometre-by-kilometre IRI profile referenced to GPS chainage — the format NHAI's PMS data submission requires.
What is rut depth and why does it matter in pavement surveys?
Rut depth is the depth of the permanent transverse depression (channel) worn into the pavement surface by repeated traffic loading — measured in millimetres. Rutting indicates structural failure of the pavement layers (base, sub-base, or subgrade) and is a critical trigger for rehabilitation decisions. NHAI uses rut depth thresholds in OMT contract monitoring to determine whether routine maintenance, overlay, or full reconstruction is required. Jancy Labs' NSV records rut depth using laser-based cross-sectional profiling as per IRC SP 16.
Can Jancy Labs conduct NSV surveys anywhere in Tamil Nadu?
Yes. Jancy Labs mobilises our Network Survey Vehicle across Tamil Nadu for road section surveys. We serve highway projects in Chennai, Madurai, Coimbatore, Trichy, Tirunelveli, Salem, Dindigul, and across the state — including national highways, state highways, and rural roads under PMGSY. Call +91-8680049004 to discuss your road section, chainage range, and scheduling before your submission deadline.
Where is Jancy Labs located?
Jancy Labs is located at No.6, Ganesh Nagar 3rd Street, Surya Nagar, Alagar Kovil Main Road, K.Pudur, Madurai — 625007, Tamil Nadu. We are open Monday to Saturday, 10:00 AM to 6:00 PM. Furthermore, we serve highway projects across Tamil Nadu through on-site NSV survey mobilisation — so your road section does not need to be near Madurai for us to serve you.
Get NSV Tested

Get NSV Testing for Your Road Project

Your pavement survey deadline is closer than you think. Get IRC SP 16-compliant NSV test reports — accepted by NHAI and Highways Department — from Jancy Labs.
